The Anatomy of an HPU Motor and How It Connects to the System
Before comparing motor types or running sizing calculations, it helps to understand exactly which parts of an HPU motor matter for performance and which parts only matter for installation. An HPU motor is not a generic electric motor bolted onto a hydraulic tank; it is selected and configured around a set of mechanical and electrical interfaces that are specific to hydraulic power transmission.
01
Shaft and Keyway
The motor output shaft carries a keyway or spline that must match the pump's input coupling exactly. A mismatch here is the single most common cause of installation delays on new HPU builds.
02
Mounting Flange
NEMA and IEC frame motors use standardized C-face or D-flange mounts so the motor bolts directly to a bell housing without custom brackets, keeping alignment consistent across the build.
03
Windings and Insulation Class
Insulation class, typically rated B, F, or H, determines how much heat the windings tolerate before degrading. Class F is the de facto standard for most industrial HPU duty today.
04
Enclosure Type
TEFC (Totally Enclosed Fan Cooled) and TENV (Totally Enclosed Non-Ventilated) enclosures protect windings from the oil mist, dust, and washdown spray common around hydraulic equipment.
Motor Types Used Across Hydraulic Power Unit Designs
Selecting the right motor type for a Hydraulic Power Unit depends on duty cycle, available power supply, ambient conditions, and how frequently the unit starts and stops throughout a shift. Below is a comparison of the four motor categories most commonly paired with hydraulic pumps in industrial and mobile equipment, followed by a closer look at where each one earns its place.
| Motor Type |
Typical Power Range |
Common Use Case |
Key Limitation |
| Three-Phase AC Induction |
1 to 500 HP |
Stationary industrial HPUs |
Requires three-phase supply |
| Single-Phase AC |
0.5 to 10 HP |
Small shop presses, lifts |
Lower starting torque |
| DC Motor |
0.5 to 20 HP |
Mobile, battery-powered units |
Limited continuous duty life |
| Engine-Driven (PTO) |
10 to 1000+ HP |
Off-road, agricultural, marine |
No utility grid dependency, but needs fuel logistics |
Comparison of motor types used to drive Hydraulic Power Units across stationary and mobile applications.
Three-Phase AC Induction Motors
Three-phase motors dominate stationary industrial Hydraulic Power Units because they deliver high starting torque, run efficiently at constant speed, and have decades of proven reliability in factory environments. A typical NEMA-frame three-phase motor in this role runs at 1800 or 3600 RPM, with 1800 RPM being far more common for pump longevity since lower shaft speed reduces wear on pump shaft seals and bearings.
Single-Phase AC Motors
Single-phase motors fill the gap in smaller shops and facilities where three-phase power was never installed. They work well for light-duty presses, lifts, and small test stands under roughly 10 horsepower, but their lower starting torque means they struggle with high-inertia loads or applications that need to start under full pressure.

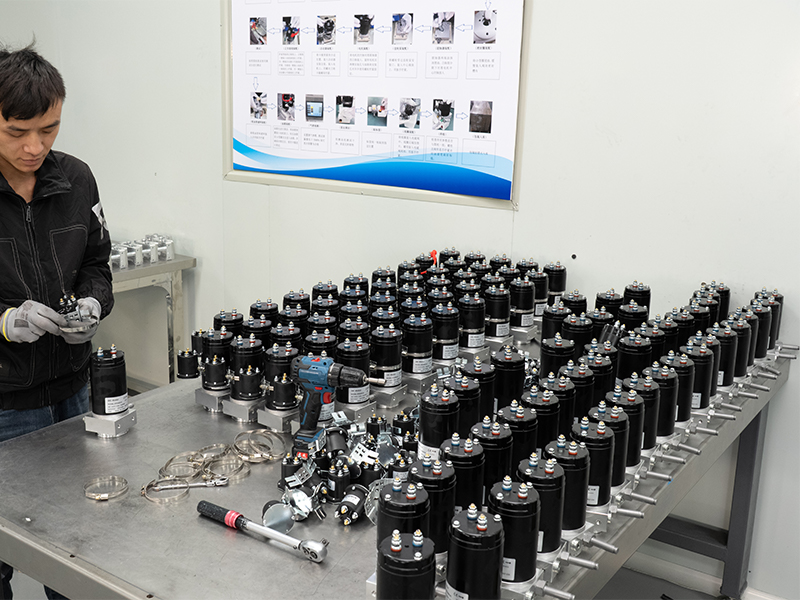

DC Motors for Mobile and Battery-Powered Units
DC motors are the standard choice for battery-powered Hydraulic Power Units used in scissor lifts, mobile platforms, and electric work trucks. Common voltages are 12V, 24V, and 48V, with higher voltage systems generally delivering more power for less current draw and therefore less heat in the wiring.
Engine-Driven Power Take-Off Units
When a Hydraulic Power Unit needs to operate far from any electrical grid, an engine-driven PTO arrangement takes over. These setups are common on agricultural equipment, drilling rigs, and marine deck machinery, where diesel or gasoline engines already exist for other purposes and the hydraulic pump simply taps into available shaft power.
Undersizing an HPU motor is one of the most common and most expensive mistakes in hydraulic system design. A motor that cannot deliver enough torque at startup will trip overload protection repeatedly, overheat, and fail well before its rated service life. Oversizing, on the other hand, wastes energy and increases upfront cost without adding any usable performance, and it can also make the motor run less efficiently at partial load.

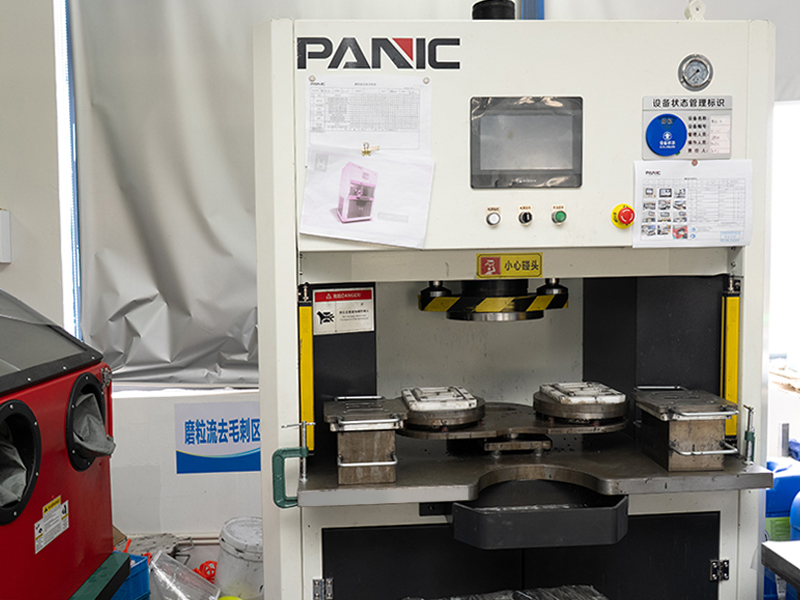

Worked Example
Consider a Hydraulic Power Unit that needs to deliver 15 gallons per minute at 2000 PSI to operate a hydraulic press. Applying the formula: 15 multiplied by 2000 equals 30,000, divided by 1714 equals 17.5 horsepower. In practice, most designers round up to the next standard motor frame size, which would be a 20 HP motor, to account for pump efficiency losses and to leave headroom for pressure spikes during the work cycle.
Sizing Checklist
- Always size for peak pressure demand, not average operating pressure
- Factor in duty cycle, since intermittent duty allows smaller motors than continuous duty
- Account for ambient temperature, since motors derate in enclosed or hot environments
- Match motor RPM to pump RPM rating to avoid cavitation or excess wear
- Leave at least 10 to 15 percent headroom above the calculated minimum horsepower
Duty Cycle and Its Effect on Sizing
Duty cycle describes what fraction of an operating hour the motor spends under full load. A press that cycles for 8 seconds and rests for 22 seconds has a duty cycle near 27 percent, which allows a smaller motor than a continuous-duty application like a plastic injection molding clamp that holds pressure for minutes at a time. Motor nameplates list duty rating as S1 for continuous duty or S3 for intermittent duty, and matching this rating to the actual application profile prevents both nuisance overheating and unnecessary oversizing.
Energy Efficiency and Variable Frequency Drives
A fixed-speed motor running a hydraulic pump at full speed continuously, even when the system only needs partial flow, wastes a substantial amount of energy as heat across the relief valve. Pairing the HPU motor with a Variable Frequency Drive allows the motor speed to track actual system demand instead of running at one constant RPM around the clock.
| Operating Condition |
Fixed-Speed Motor |
VFD-Controlled Motor |
| Idle / Standby |
Full power draw maintained |
Speed reduced to near zero |
| Partial Load |
Excess flow dumped through relief valve |
Flow matched directly to demand |
| Startup Inrush |
High current spike each start |
Soft ramp reduces current spike |
| Noise Level |
Constant full-speed noise |
Drops with reduced speed |
Energy and control differences between fixed-speed and VFD-controlled HPU motors.
Field data collected across multiple industrial press and injection molding installations has shown energy savings between 30 and 60 percent after retrofitting fixed-speed HPU motors with variable frequency drives, depending on how much of the duty cycle is spent at partial load versus full load. Applications with long idle or dwell periods, such as plastic injection molding clamp stations, tend to see the largest gains, while applications running near full load continuously see smaller but still meaningful savings.
Where VFDs Add the Most Value
Pressing and clamping operations, test stands with variable flow requirements, and any HPU that spends significant time idling between cycles are the strongest candidates for a VFD retrofit. Continuous-duty applications running at one steady flow rate around the clock see less benefit, since the motor is already operating near its most efficient point most of the time.
Motor-to-Pump Coupling and Alignment
The connection between the motor shaft and the pump shaft is a frequent source of premature failure that has nothing to do with the motor's electrical rating. Misalignment between the motor and pump shaft introduces radial load on bearings that were not designed to carry it, shortening seal and bearing life on both components even when the motor itself is performing exactly as specified.
- Use a flexible coupling rated for the torque and speed of the motor, not just its horsepower
- Check angular and parallel alignment with a dial indicator or laser alignment tool before final bolt-down
- Confirm the bell housing or SAE mounting flange matches both the motor frame size and the pump mounting standard
- Re-check alignment after the first 100 hours of operation, since mounting bolts and elastomer couplings can settle
- Inspect the coupling insert or elastomer element annually for cracking, since this is a wear item even on a correctly aligned system
SAE mounting standards, such as SAE A, B, C, and D flanges, exist specifically so that motors and pumps from different manufacturers can be paired without custom machining. Confirming the SAE flange size and the keyed or splined shaft dimension before purchase avoids a mismatch that would otherwise require a custom adapter, which adds both cost and an extra point of potential misalignment to the drivetrain.
Maintenance Practices That Extend HPU Motor Life
A well-maintained HPU motor in a clean industrial environment can run reliably for 15 to 20 years, while a neglected one in a dirty or overheated environment can fail within 2 to 3 years. The difference almost always comes down to a handful of recurring maintenance habits rather than any single dramatic intervention.
Bearing and Lubrication Checks
Motor bearings should be inspected for unusual noise, vibration, or heat at regular intervals, with grease intervals following the manufacturer's nameplate or maintenance manual rather than a generic schedule. Over-greasing is just as harmful as under-greasing, since it can cause bearing overheating and seal blowout.
Thermal Monitoring
Motor winding temperature is one of the clearest early indicators of trouble before a failure occurs. A sustained winding temperature 10 degrees Celsius above the motor's rated temperature class roughly halves its expected insulation life.
Electrical Supply Quality
Voltage imbalance across the three phases of more than 1 percent can increase motor heating disproportionately, and sustained imbalance above 5 percent is a common precursor to premature winding failure in industrial HPU motors.
Contamination Control
Cooling fins, vents, and the area around the motor should stay free of hydraulic oil residue, metal fines, and dust, since contamination buildup restricts airflow and is one of the leading causes of slow, hard-to-diagnose overheating.
Quarterly Maintenance Checklist
- Keep cooling fins and vents free of dust and debris
- Verify supply voltage stays within 10 percent of nameplate rating
- Inspect coupling and mounting bolts for looseness
- Track motor amperage draw over time to catch developing pump wear early
- Log winding temperature readings to spot gradual upward trends
Diagnosing Common HPU Motor Problems
Most reported HPU motor issues trace back to one of three root causes: electrical supply problems, mechanical coupling problems, or hydraulic system backpressure being mistaken for a motor fault. Separating these early prevents replacing a perfectly good motor when the actual problem is elsewhere in the circuit.
| Symptom |
Likely Cause |
First Check |
| Motor hums but does not turn |
Single-phase loss or seized pump |
Check all three phase voltages |
| Frequent overload trips |
Undersized motor or high system pressure |
Verify relief valve setting against motor rating |
| Excessive vibration |
Coupling misalignment or worn bearings |
Inspect coupling alignment first |
| Overheating during normal duty |
Blocked ventilation or low voltage |
Clean vents and measure supply voltage |
| Slow or weak cylinder movement |
Worn pump rather than motor issue |
Measure actual flow output against rated GPM |
Common HPU motor symptoms with likely causes and the first diagnostic step.
Separating Motor Faults From Hydraulic Faults
A simple amperage check goes a long way toward separating a true motor problem from a hydraulic system problem. If the motor draws normal current but the system underperforms, the issue is almost always downstream in the pump, valves, or actuators. If the motor draws excessive current relative to its nameplate rating, the load on the motor itself, whether from the pump or from a mechanical binding issue, is the more likely culprit.
Frequently Asked Questions About HPU Motors
What size motor do I need for a Hydraulic Power Unit?
Motor size depends on required flow rate and maximum system pressure, calculated using the formula HP equals GPM times PSI divided by 1714. A press needing 15 GPM at 2000 PSI requires approximately 17.5 HP, typically rounded up to a 20 HP motor frame to leave margin for pressure spikes.
Can a single-phase motor run a Hydraulic Power Unit?
Yes, single-phase motors can drive smaller Hydraulic Power Units up to roughly 10 HP, but they generally have lower starting torque than three-phase motors of the same rating, which matters for applications with high startup load such as presses that start under pressure.
How long should an HPU motor last?
A properly sized and maintained HPU motor in a clean environment commonly lasts 15 to 20 years of service, while motors exposed to heat, dust, voltage imbalance, or chronic misalignment often fail within 2 to 3 years.
Why does my HPU motor overheat under normal load?
The most common causes are blocked cooling vents restricting airflow, supply voltage running below the nameplate rating, or the pump demanding more torque than the motor is rated to deliver continuously due to oversized relief valve settings.
Does adding a VFD to an HPU motor actually save energy?
Yes, field results across industrial installations show energy savings between 30 and 60 percent after adding variable frequency drive control, with the largest gains seen in applications that have long idle or partial-load periods between work cycles.
What is the difference between motor horsepower and pump displacement?
Motor horsepower describes how much rotational power the motor can deliver, while pump displacement describes how much fluid volume the pump moves per revolution. Together at a given RPM, these two values determine the system's actual flow rate and pressure capability.
What insulation class should an HPU motor have?
Class F insulation is the standard choice for most industrial HPU motors today, offering a higher temperature tolerance than older Class B designs while remaining widely available across motor brands and frame sizes.
How often should HPU motor alignment be checked?
Alignment should be verified at installation, rechecked after the first 100 hours of operation as mounting hardware settles, and then inspected during routine quarterly maintenance, or sooner if vibration or noise increases noticeably.
